MultiWav Splitter · v1.1.0
Split X32 & WING multitracks
into individual WAV tracks
MultiWav Splitter turns the 32/64-channel WAVs that X-LIVE records to SD card into individually named tracks. Get live, worship, and broadcast multitracks ready for your DAW.
14-day free trial · No credit card · Get it for Windows or Intel Mac
How it works
Load, configure, export

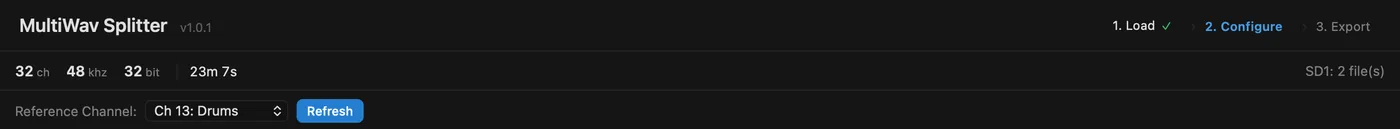

Choose the SD card folder
See the channel count, sample rate, length, and number of split files at a glance.
Track names · mode · range
Name each track, choose mono or stereo, and drop silent channels in one click with Disable Empty.
One WAV per track
Drag the exported files into your DAW and you're done.

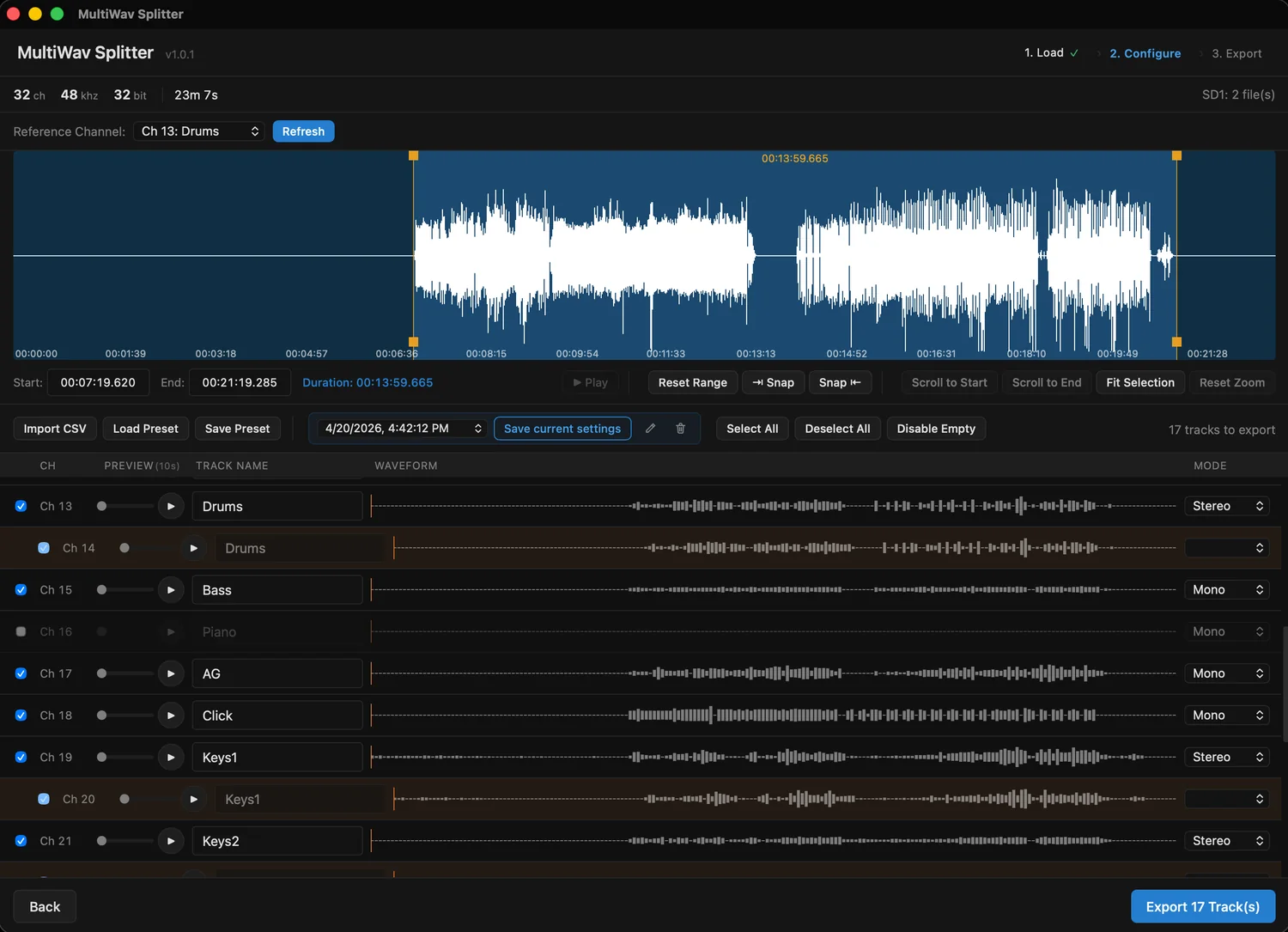

Range selection
Export just the songs you need
- Tag markers: reads the Tags you dropped while recording from

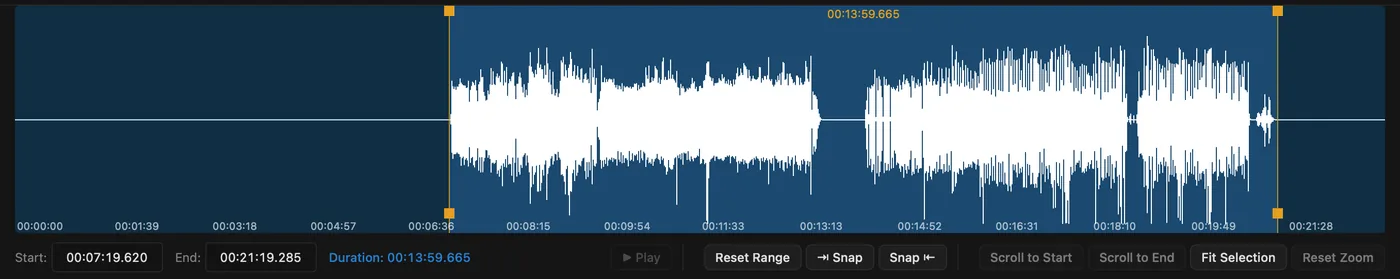

SE_LOG.BINand jumps straight to them - On the waveform: show any channel as the reference waveform and drag the start and end points
- Full export: or export the whole recording at once

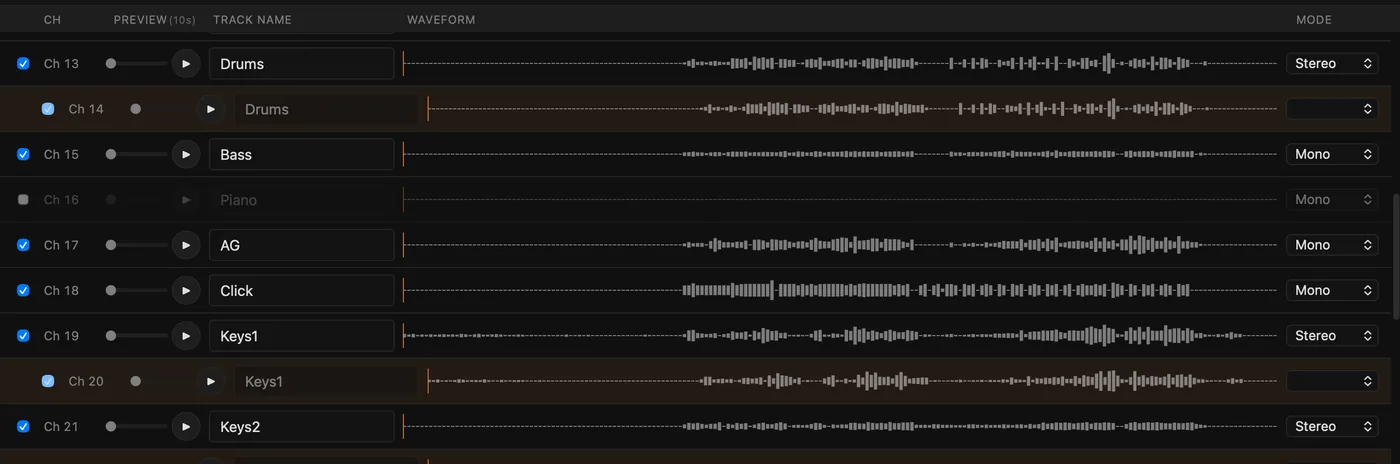

Track setup
Set up names and channels once
- Presets: save track names, mono/stereo, and stereo pairs as JSON and load them next week
- Import CSV: pull track names from a CSV, TSV, or text file in one go
- Disable Empty: find silent channels and remove them from the export in one click
- 10-second preview: listen to each track before you export
Automatic 4 GB split-file merging
Joins 00000001.WAV, 00000001_1.WAV … in order and exports them as one track.
32/64-channel auto-detection
Reads the session log to match the channel count and verify file integrity.
In-app auto-updates
The app lets you know when a new version is out and updates itself.
Comparison
How it compares with splitting in your DAW
| Task | In your DAW | MultiWav Splitter |
|---|---|---|
| 4 GB split files | Import each file and join them by hand | Merged automatically |
| Track names | Type 32–64 names every time | Presets · CSV |
| Stereo channels | Combine two tracks by hand | Pair them → one stereo WAV |
| Unused channels | Listen to each one and delete it | One click with Disable Empty |
| Song-by-song ranges | Cut them on the timeline | Tag markers · waveform range |
Pricing
Try it, then decide
- Start right away, no credit card
- Every feature for 14 days
- Enter a license key to keep going
- No subscription, pay once
- In-app auto-updates
- macOS · Windows
- Up to 2 of your computers
Downloading, buying, or using the app is subject to the Terms and Conditions. Payments are processed by Lemon Squeezy.
Download
The right file for your computer
macOS · Apple Silicon
M1 / M2 / M3 / M4 · DMG 13.0 MB
Download free trialInstallation
Installation and system requirements
macOS
- Open the DMG and drag the app into your Applications folder.
- Requirements: macOS 10.15 Catalina or later (Apple Silicon · Intel)
Windows
- Run the EXE or MSI.
- If SmartScreen blocks it, click More info → Run anyway.
- Requirements: Windows 10 (1803 or later) or 11 with the WebView2 runtime (included in current Windows)
FAQ
Frequently asked questions
Is it an X-LIVE (XLive) converter?
Yes. It converts the multichannel WAV files that the X32 and WING X-LIVE (XLive, X_LIVE) card records into one WAV file per track, ready to drop into your DAW.
Does it handle 64-channel WING recordings?
Yes. 32- and 64-channel recordings are detected automatically and split per channel.
What about recordings larger than 4 GB?
X-LIVE splits long recordings into separate files because of the FAT32 limit (00000001.WAV, 00000001_1.WAV …). MultiWav Splitter joins them in order and exports one continuous track.
Windows is blocking the installer.
In the SmartScreen warning, click "More info", then "Run anyway".
What can I do during the trial?
Every feature is available for 14 days. No credit card required.
What happens after 14 days?
You need a license key to keep using the app. Enter the key you receive after purchase under "Activate License" in the app.
How many computers can I use one license on?
You can activate it on up to two personal computers that you own. License keys can't be shared or resold.
Can I get a refund?
Because of the 14-day free trial, all sales are generally final. If you run into a technical issue that can't be resolved, refund requests are reviewed case by case through our payment processor, Lemon Squeezy.
How should I handle my original recordings?
Always back up the original audio on your SD card before you start. Liability for data loss is covered in section 5 of the Terms and Conditions.
The full license, trial, and refund terms are in the Terms and Conditions.
